Change of cylinder's posture

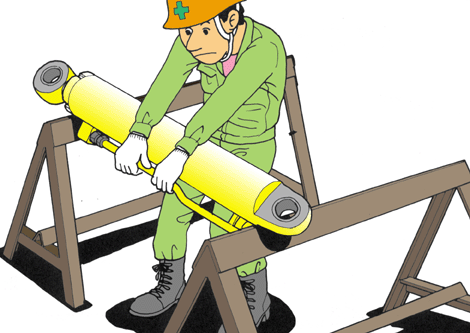

A worker tried to lift up a cylinder from trestles with his hands. But he could not do so, because the piping faced downward and interfered with the trestles. Now he tries to turn it over.



Various Points of Hazard
1. The two trestles are a bit too wide apart from each other. The cylinder may slip off at one end and drop on the ground.
2. The cylinder piping may likely be damaged at the connection, if the worker gives a tug at it.
